Autofeed Pillar Drilling Machine

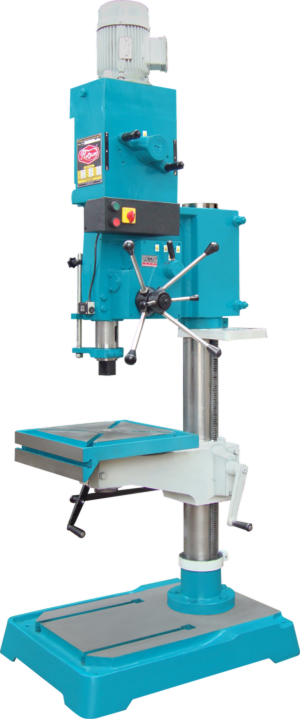

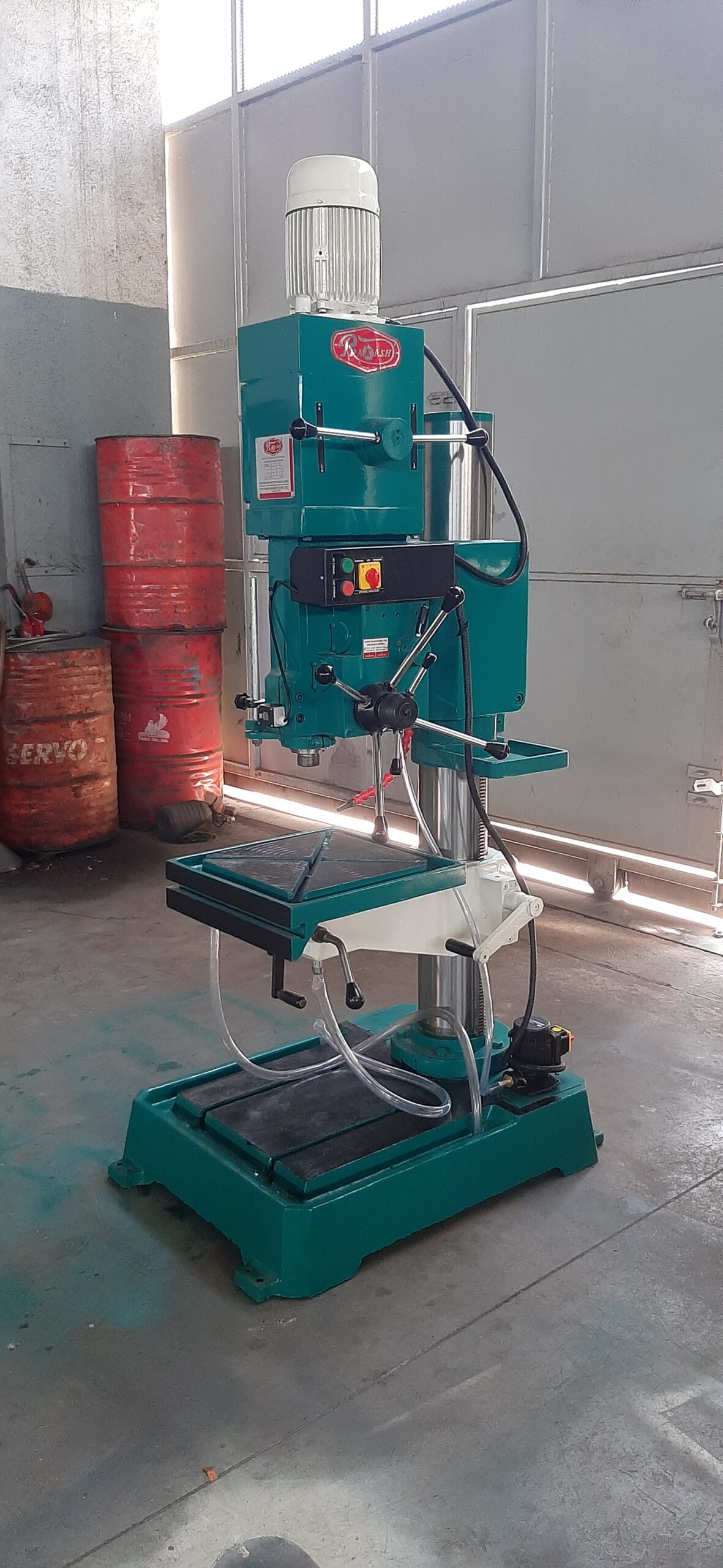

Introducing our P40 Neo – 40 mm capacity all geared auto feed Pillar drilling machine our U drill specialist. The most rigid structure ever a pillar drill machine has in its segment.
All gears are manufactured from 20MnCr5 Gear Material and hardened up to HRC 50–55, ensuring superior wear resistance and high torque transmission capability. The oil bath lubrication system continuously lubricates the gears, significantly reducing friction, heat generation, and maintenance requirements while increasing machine life.
To ensure smooth power transmission and high operational reliability:
- All gears rotate on high-quality bearings for smooth sliding and reduced vibration
- Gears are internally six-splined and shafts are externally splined for better torque transfer and durability
- Precision gear machining is carried out on imported WMW Germany Gear Shaper Machines
- All splines are machined using imported PFAUTER Germany Spline Milling Machines, ensuring unmatched accuracy and consistency
This advanced gearbox design makes our All Geared Pillar Drilling Machines highly reliable for continuous industrial operation and heavy-duty drilling applications.
Heavy Duty Autofeed Gear Box System
The Autofeed Gear Box used in models P40Neo , R40AA and R40BA is specially designed for high-load drilling operations and smooth automatic feed performance.
The gearbox is equipped with:
- Heavy-duty hardened NiCr Steel gears
- Large 2.5 Module gears for superior strength and long life
- Dual worm gears manufactured with heavy-duty 2.82 Module teeth
- High-quality bearing-supported shafts instead of conventional bushes for improved reliability and reduced wear
A key highlight of our autofeed mechanism is the Taper Cone Engagement System, similar to those used in heavy-duty lathe machines. This mechanism provides:
- Higher load carrying capacity
- Smooth engagement during operation
- Better torque transmission
- Enhanced durability compared to conventional feed systems
The combination of hardened gears, precision machining, and robust feed mechanism makes our machines ideal for industries requiring high accuracy, continuous operation, and dependable drilling performance.
Our pillar drilling machines are widely used in:
- Heavy engineering industries
- Fabrication workshops
- Steel plants
- Machine shops
- Industrial manufacturing units
For more information about our All Geared Pillar Drilling Machines, technical specifications, or customized drilling solutions, please contact our technical team.
