Product Overview
Oil bath Gear Box

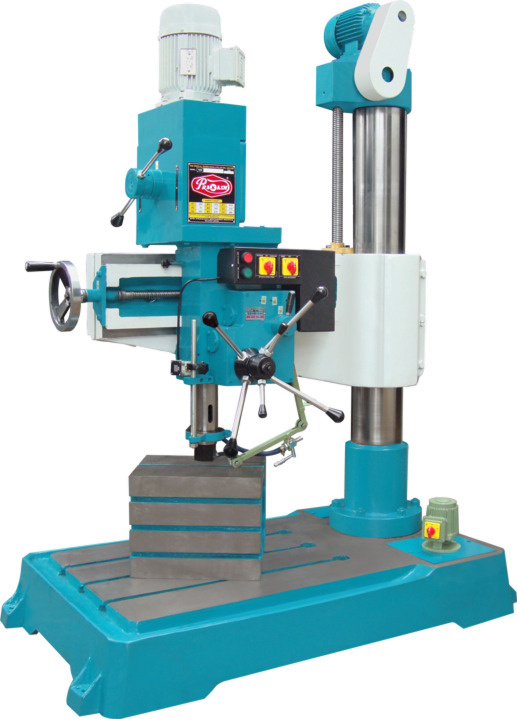

The all new design of gear box in model PMW R40AA,R40G and P40AA is having 9 speed with all 9 gears made up of hardened NiCr steel up to HRC 50 55. Oil bath gear box and hardened gears give very long life to the machine.
Rotation and easy sliding of gears in bearings gives very high reliability.
Gear are internally six splined and shaft are externally splined All the gears in gearbox are machined on imported WMW Germany make gear shaper.
All the splines in the gear box are machined on imported PFAUTER
Germany make spline milling machine. Autofeed Gear Box Autofeed gear box used in Machine R40AA, R40BA & P40AA is having gears made up of NiCr Steel with heavy 2.5 module. All gears are also hardened. Two worm gears are made up of heavy duty 2.82 module teeth.
All the shafts in the Gear Box are supported through good quality bearings and not the Bushes. Engaging Of Autofeed through TAPER CONE MECHANISM
as in the lathe machines enables maximum loading capacity leaving behind other machines.
